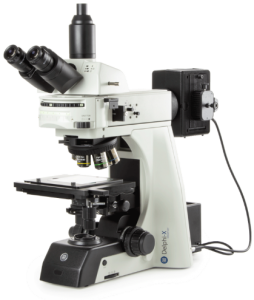

6 – Euromex Delphi-X Observer Metallurgical Microscopes

  • Brightfield and Darkfield illumination
  • Normarski DIC (optional)
  • Enhanced infinity corrected EIS optical system
  • High contrast objectives with minimal abberations
  • Full Apo, Semi- Apo and Plan EIS objectives
  • Super Wide field SWF 10x/25mm eyepieces
  • 100 W halogen illumination
  • Sextuple reversed nosepiece with slot for DIC

MODELS Fixed
30 degree Siedentopf head		 Ergonomic
tilting head		 SWF
10x/25 mm eyepieces		 Plan EIS 2x/

0.06 objective*

 Plan Semi-Apochromatic EIS
5x/0.15, 10x/0.30 and 20x/0.45 objectives*		 Plan Apochromatic
EIS 50x/0.80 objective*		 Plan Apochromatic
EIS 100x/0.90 objective*		 100 W 24 V transmitted
halogen Köhler illumination		 100 W 24 V reflected
halogen Köhler illumination		 DIC
DX.2053‑PLMRi • • o • • o • • o
DX.2058‑PLMRi • • o • • o • • o
DX.2053‑PLMi • • o • • o • o
DX.2058‑PLMi • • o • • o • o

* Infinity corrected
o = optional

NORMARSKI DIC (optional)
With the redesign of the DIC-module visualization of height differences which normally cannot be displayed using brightfield techniques has greatly improved. These relief like images are ideal for surface inspections of wafers, LCD screens etc.

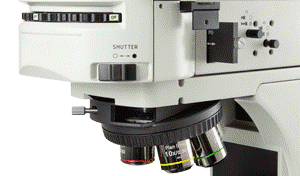

(photo: Revolver with slot for Normarski DIC slider)
